Detect and remove metal particles mixed into the beverage containers.
The use of high-precision sensors enables highly accurate inspection, and the use of new algorithms reduces mistakes in judgement.
Equipped with new algorithms to improve detection precision and reduce the rate of incorrect rejections.
Aluminum cans, steel cans, paper cartons, PET plastic bottles (both upright and inverted conveyance)
Installation of a networking unit enables connection to an automation network at the plant.
Supports remote operation, counter, alarm output, device operation monitoring, and more.
Supports a processing capacity of 2,000 containers/minute.
Inspection criteria settings can be registered in advance for each type of container.
Switching between products or starting operation can be performed by touchscreen.

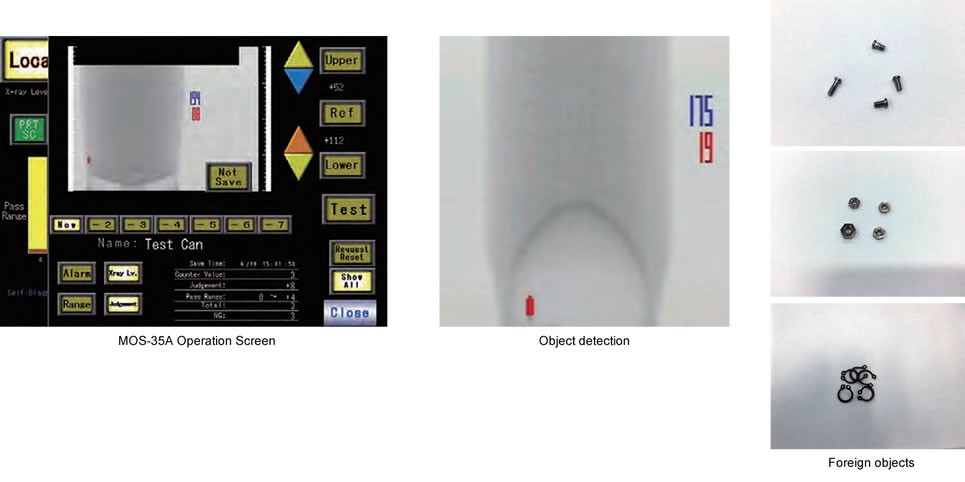

Inspection images can be displayed on a touchscreen.
All inspection images can also be output to or stored on a general-purpose network drive(optional).
| Item | Specifications | |
|---|---|---|
| Container Types | Aluminum cans, steel cans, PET bottles, paper cartons, etc. |
|
| Processing capacity [CPM] | 2,000 | |
| Power supply | Phase | single phase |
| Voltage | AC220 / 200 / 100V | |
| Frepuency | 50 /60Hz | |
| Capacity | 1.5kVA or more | |
| Power supply fluctuation | ±10% or less | |
| Grouding | T-T (as specified in IEC 60364) | |
