Our flood simulator supports evacuation planning and education for disaster-prevention. Our unique algorithm enables to simulate flood disaster quickly on your PC. User interface integrated on our original three-dimensional mapping system enables intuitive operation and visualization.
Our original four-dimensional (latitude, longitude, elevation and time) Geographic Information System easily visualize realistic flooded city.
The entire earth viewpoint*
Elevation data viewpoint**
CAD model viewpoint

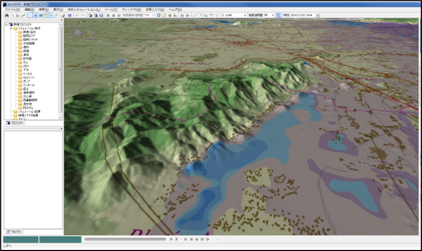

3-dimensional inundation viewpoint
* Built-in support for NASA satellite photos
** Geospatial Information Authority of Japan 50 m DEM

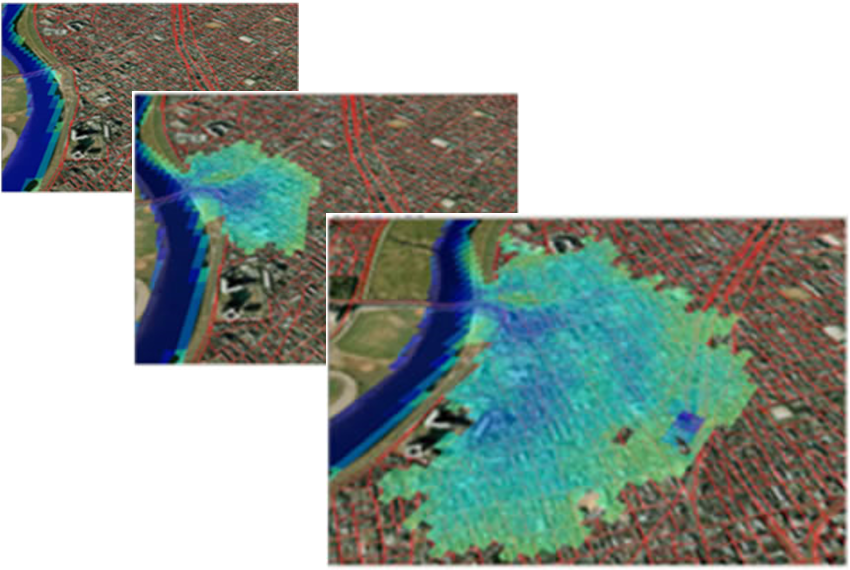

Beginning of simulation
5 min later
15 min later
* Calculation time is subject to PC spec.
Our unique calculation method (Dynamic Domain Defining Method, or DynamicDDM) makes flood simulation faster, and enables real time flood forecasting.
A comparison of flooded depth based on our built-in global topography data (NASA's SRTM3 ) with local one (Geospatial Information Authority of Japan's 50 m DEM) suggest the global data has adequate accuracy.
Condition: a flood caused by a levee breach in Tone River (largest river in Japan).
Geospatial Information Authority of Japan's 50 m DEM
Resolution : Horizontal 50 m
Vertical 1 m
NASA SRTM3
Resolution : Horizontal 90 m
Vertical 1 m
Risk of walking in the flooded water for evacuation is assessed based on inundation depth and velocity.
User can output a simulated result as Hazard map or video (AVI), which are suitable contents to distribute through the internet.
| Item | Minimum configuration | Recommended configuration |
|---|---|---|
| CPU | Intel® Core™ i5 | Intel® Core™ i7 (Quad-core) |
| Memory | 2 GB | 16 GB |
| Graphics Accelerator | 3D graphics accelerator (memory 1024 × 768 × 32 bit) |
NVIDIA®GeForce®GTX500, 600 or 700 series or equivalent product. |
| HDD | 100 GB space | 2 TB |
| Screen Resolution | 1,02 4× 768 dot
16,770,000 color (24-bit True Color) |
1,920 × 1, 080 dots
16,770,000 color (24-bit True Color) |
| OS | Windows® 7 (Japan language version) Windows® 8.1 (Japan version) or, Windows® 10 (Japan version) 64-bit Edition | Windows® 10 (Japan version) 64-bit Edition |
| USB Terminal | Port (1 port) for license authentication USB key (USB protected chip) connection. | |
| Port (1 port) for portable HDD (storing program) connection. | Port (1 port, USB 3.0 recommended) for portable HDD (storing program) connection. | |
| Mouse, etc. | Mouse or touchpad | Mouse with Wheel |
Windows® is a trademark or registered trademark of Microsoft Corporation in the United States and other countries.
Intel® is a trademark of Intel Corporation in the United States and other countries.
NVIDIA®,GeForce®GTX is a trademark or registered trademark of NVIDIA Corporation in the United States and other countries.
This map is based on the Digital Map 2,5000 (Map Image) and Digital Map 50 m Grid (Elevation) and Digital Map 5m Grid (Elevation) published by Geographical Survey Institute, Japan with its approval under the article 30 of The Survey Act. (Approval Number SOU-SHI No.635 2005)
